We, other than producing CO2 plants, also offer a wide range of accessories that are essential in CO2
production. The entire range of accessories is tested and tried on operations and maintenance. We assure
that all the accessories, we offer for carbon dioxide plant is in accordance with the industry standards.
The manufacturing of CO2 plant accessories is done using high grade metals and fiberglass so that complete
protection from corrosion can be achieved. We have accessories for removing moisture from CO2 gas and
vaporizing it. In addition to this, we also offer testing equipments, cooling systems and control panels
for smooth and fully automatic operation in the plant.
Vaporizers & Evaporators are one of the widely used equipments for carbon dioxide plants. We offer two
types of vaporizers, ambient CO2 vaporizer and water heated CO2 vaporizer to clients.
Water Heated CO2 Vaporizer - This is a shell and tube heat exchanger. In this vaporizer, circulating water
discharge its heat that is used to vaporize liquid carbon dioxide. This reduces the plant refrigeration
load as any water that needs to be cool down can be used. The supply of liquid CO2 will automatically shut
off as soon as any interruption in water flow or drop in the CO2 gas temperature or pressure will be
recorded.
Ambient CO2 Vaporizer - This is an evaporating coil type heat exchanger. In this vaporizer, ambient air is
blown across the dual set of evaporating coils at a minimum temperature of 50°F (10°C). This air
generates the heat used to vaporize the liquid CO2. There are installed dual coils that are used to
defrost the ice formed due to humidity in the air. This ensures no risk of reduction in heat transfer and
CO2 vaporizing capacity.

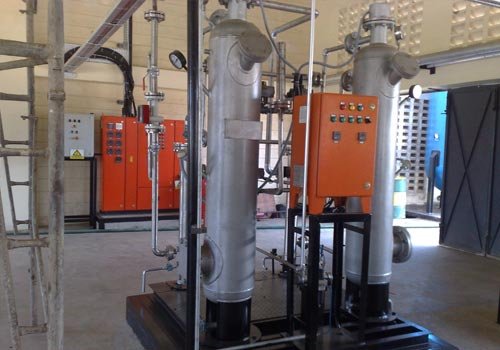

CO2 Dryers are used extensively in industries like food & beverage for the removal of moisture and
impurities in CO2 gas. The dryer is controlled with PLC (programmable logic controller). The equipment
is specifically intended for reducing or eliminating point-of-use impurities in gases such as hydrogen,
helium, methane, nitrogen and carbon dioxide. This ensures a continuous supply of clean and dry gas.
These dryers are developed such that a small quantity of dry CO2 purge is generated with the
regeneration of desiccant at higher temperature.

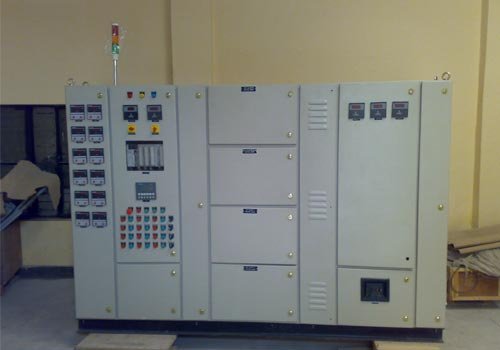

Integrated with advanced technology, our Control Panels are the effective and user friendly solution for
automation in carbon dioxide plants process controls. With these panels, the supply of gas can be locked
when not required. This results in remarkable reduction in the cost of fuels and overall price. The
panels are fully automatic and incorporated with PLC program for the ease in operations.

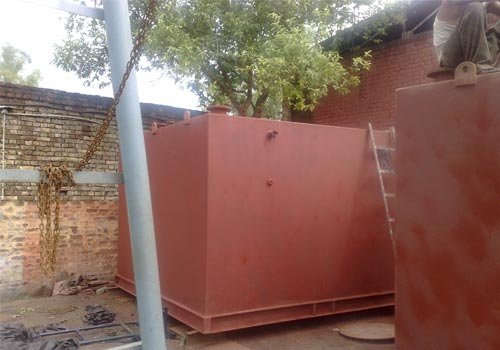

Combined Hot and Cold Tank is one of the widely used accessories in CO2 plant. The tank is manufactured
using the best grade materials with insulation and aluminum cladding. This ensures excellent protection
from any possible damage due to environment factors and temperature change. These are also used
extensively in medicine field. We offer these tanks in horizontal as well as in vertical arrangement.

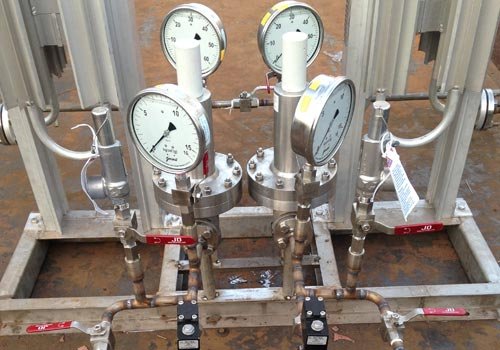

CO2 Testing Bench is an important part of any carbon dioxide production, filling and recovery system.
This is specifically intended for providing reliable cylinder testing instrumentation in accordance with
international rules. In this system, along with cylinder testing, hydro pressure pump and complete
measuring setup is also provided. This testing bench is used extensively in industries to measure the
enlargement of cylinder at the utmost pressure, if it is within the permissible limit or not.

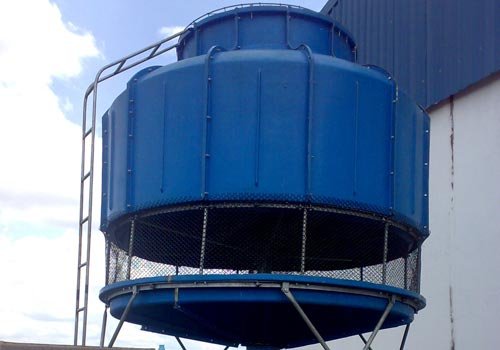

Cooling Towers are specifically intended for CO2 plant. These are made of good quality fiberglass that
ensures protection from corrosion. The metallic parts used in the towers are epoxy coated or powder
coated for rust proof finish. These towers are designed in bottle shape, hence, can be installed at any
site regardless of the persisting wind focus.
